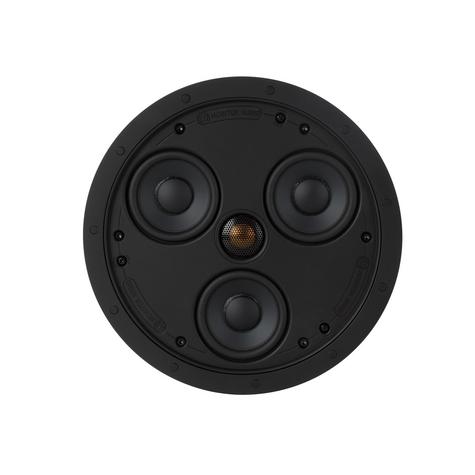

CSS230 Super Slim In Ceiling

Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.

The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.

In keeping with Monitor Audio's renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported' mode, a fine gauze protects the acoustic system from dust ingress.

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

Frequency Response (-6 dB) 100 Hz - 30 kHz sealed ‘CP’ (85 Hz - 30 kHz -open back)

Nominal Impedance 8 ohms

Sensitivity (1W@1M) 86 dB

Maximum SPL 103.8 dBA

Power Handling (RMS) 40 Watts - Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)

Recommended Amplifier Requirements 10 - 60 W

Drive Unit Complement 3 x 3" C-CAM cone bass-mid drivers

1 x 19 mm (3/4") C-CAM Gold Dome tweeter

Crossover Recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

Connection Gold Plated Sprung push terminals - for bare wire connection up to 4 mm(2)

Overall Diameter (Including Grille) 250 mm (9 13/16")

Overall Depth (Including Grille) 54 mm (2 1/8")

Cut-Out Hole Diameter 211 mm (8 1/4")

Mounting Depth 50 mm (2")

Optional Square Grille - Outer Dimensions 249 x 249 mm (9 3/16")

Fixing Type 3 position Tri-Grip dog leg fixings

Construction Material ABS (UL94 rated, RoHS2 Compliant) - Painted steel grille

Weight 2.88 kg (6 lb 5 oz)

Pre-Construction Bracket CB6 Pre-Construction Bracket (Purple)
