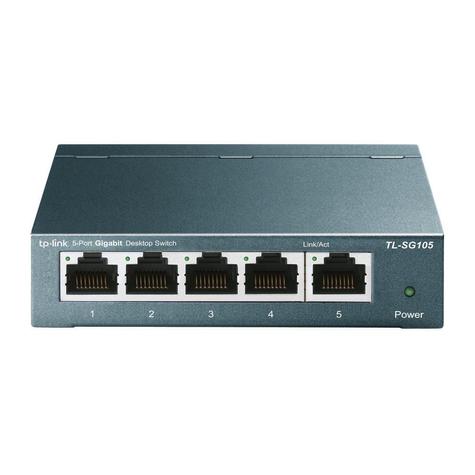

TL-SG105 5 port Steel Gigabit Switch

Price Match
£17.99
TL-SG105 5 port Steel Gigabit Switch
Price Match
£17.99
in stock
TL-SG105 5 port Steel Gigabit Switch Product code: TL-SG105 £17.99  Inc. VAT
Want it delivered by Tuesday, 31st Dec?
£9.99 Next working day  (11am cut-off, on most products we'll advise if not available)
£3.99 Standard delivery 2 - 4 working days (free on orders over £150)
Ask a Question
Please enter your details and we will get back to you.
Description
Delivery

TL-SG105 V6

5-Port 10/100/1000Mbps Desktop Switch

  • 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Plug and play, no configuration needed
  • Supports 802.1p/DSCP QoS and IGMP Snooping functions
  • Durable metal casing, desktop/wall-mounting options, and a fanless design
  • IEEE 802.3x flow control provides reliable data transfer
  • Green Ethernet technology reduces power consumption
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption 2.3 W (220 V/ 50 Hz)
Max Heat Dissipation 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
