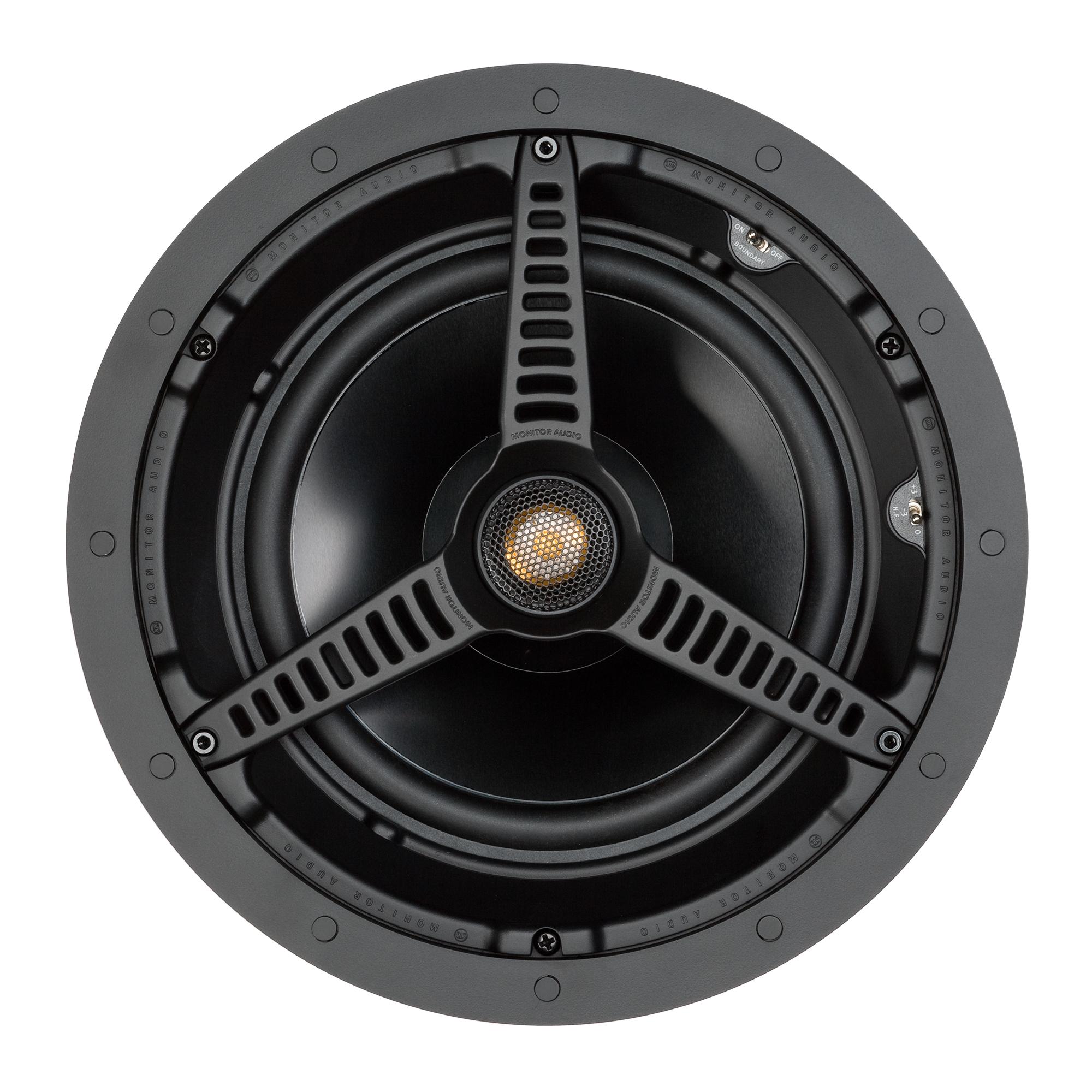

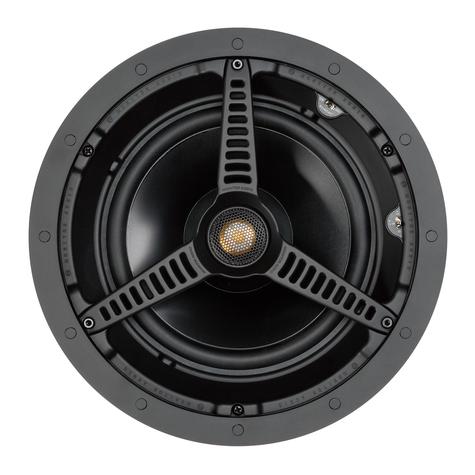

C280 In-Ceiling (8")
Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.
Technical Specifications
Frequency Response 50 Hz - 30 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 90 dB
Maximum SPL 111.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 - 120 W
Drive Unit Complement 8" C-CAM cone bass driver / 1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB) / Boundary Compensation Switch
Overall Diameter (Including Grille) 285 mm (11 1/4")
Overall Depth (Including Grille) 126 mm (4 15/16")
Mounting Depth 122 mm (4 13/16")
Cut-Out Hole Diameter 247 mm (9 3/4")
Optional Square Grille - Outer Dimensions 285 x 285 mm (11 1/4")
Fixing Type 3 position Tri-Grip dog fixings
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.8 kg (6 lb 2 oz)
Pre-Construction Bracket CB8 Pre-Construction Bracket (Green)
Back Box CCBOX-R / CMBOX-R
