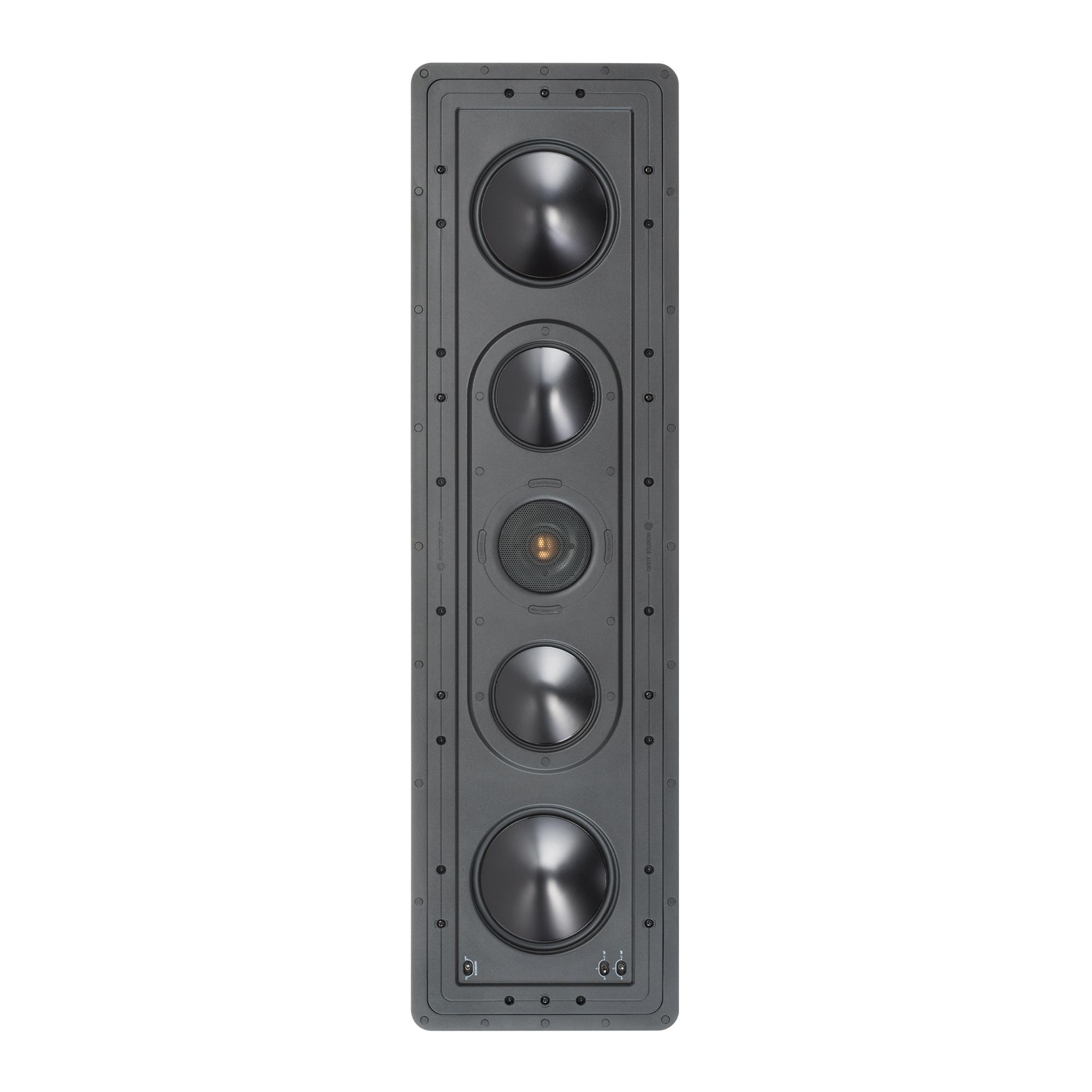

CP-IW260X In-Wall
The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio's latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
The CP-IW260X features Monitor Audio's signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B' configuration. All within a cast polymer cabinet.
Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.
Technical Specification
Frequency Response 50 Hz - 30 kHz (-6 dB typical in room response)
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 89 dB
Maximum SPL 113.8 dBA
Power Handling (RMS) 150 W
Recommended Amplifier Requirements 60 - 150 W
Crossover Frequency L.F - 500 Hz @ 12 dB/Octave
M.F -500 Hz @ 12 dB/Octave
3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Drive Unit Complement 2 x 6.5" C-CAM Bass drivers
2 x 4" C-CAM Mid-range drivers
1 x 25 mm (1") C-CAM Gold Dome tweeter
Adjustment Controls Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W x D) 907 x 257 mm (35 3/4 x 10 1/8")
Overall Depth (Including Grille) 102 mm (4")
Cut-Out Dimensions 880 x 230 mm (34 21/32 x 9")
Mounting Depth 96 mm (3 3/4")
Fixing Type 10 x Tri-Grip Dog leg fixings
Construction Material Cast Polymer enclosure (RoHS2 Compliant)
Weight 11.98 kg (26 lb 6 oz)
Pre-Construction Bracket WB12 Pre-Construction Bracket (Green)
