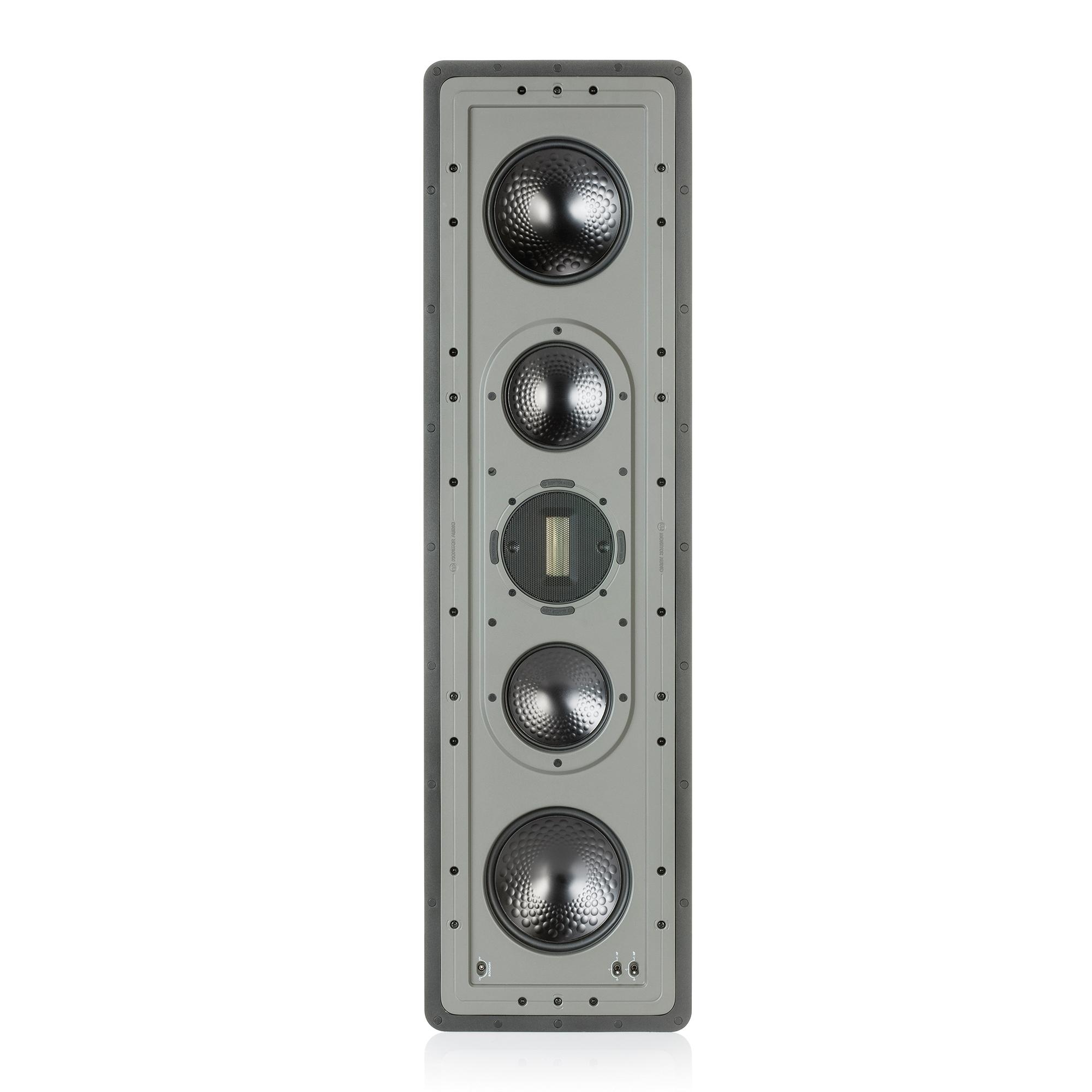

CP-IW460X In-Wall

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio's latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

The CP-IW460X features Monitor Audio's signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5" bass drivers and twin 4" mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B' configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.

Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.

Technical Specification

Frequency Response 50 Hz - 60 kHz (-6 dB typical in room response)

Nominal Impedance 6 ohms

Sensitivity (1W@1M) 89 dB

Maximum SPL 113.8 dBA

Power Handling (RMS) 150 W

Recommended Amplifier Requirements 60 - 150 W

Crossover Frequency L.F - 500 Hz @ 12 dB/Octave

M.F -500 Hz @ 12 dB/Octave

3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave

Drive Unit Complement 2 x 6.5� C-CAM Bass drivers with RST cone technology

2 x 4� C-CAM Mid-range drivers with RST cone technology

1 x C-CAM H.F ribbon transducer

Adjustment Controls Boundary Compensation (On/Off)

MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D) 907 x 257 mm (35 3/4 x 10 1/8")

Overall Depth (Including Grille) 102 mm (4")

Cut-Out Dimensions 880 x 230 mm (34 21/32 x 9")

Mounting Depth 96 mm (3 3/4")

Fixing Type 10 x Tri-Grip Dog leg fixings

Construction Material Cast Polymer enclosure with die-cast

Cast Polymer enclosure (RoHS2 Compliant)

Weight 12.98 kg (28 lb 6 oz)

Pre-Construction Bracket WB12 Pre-Construction Bracket (Green)
