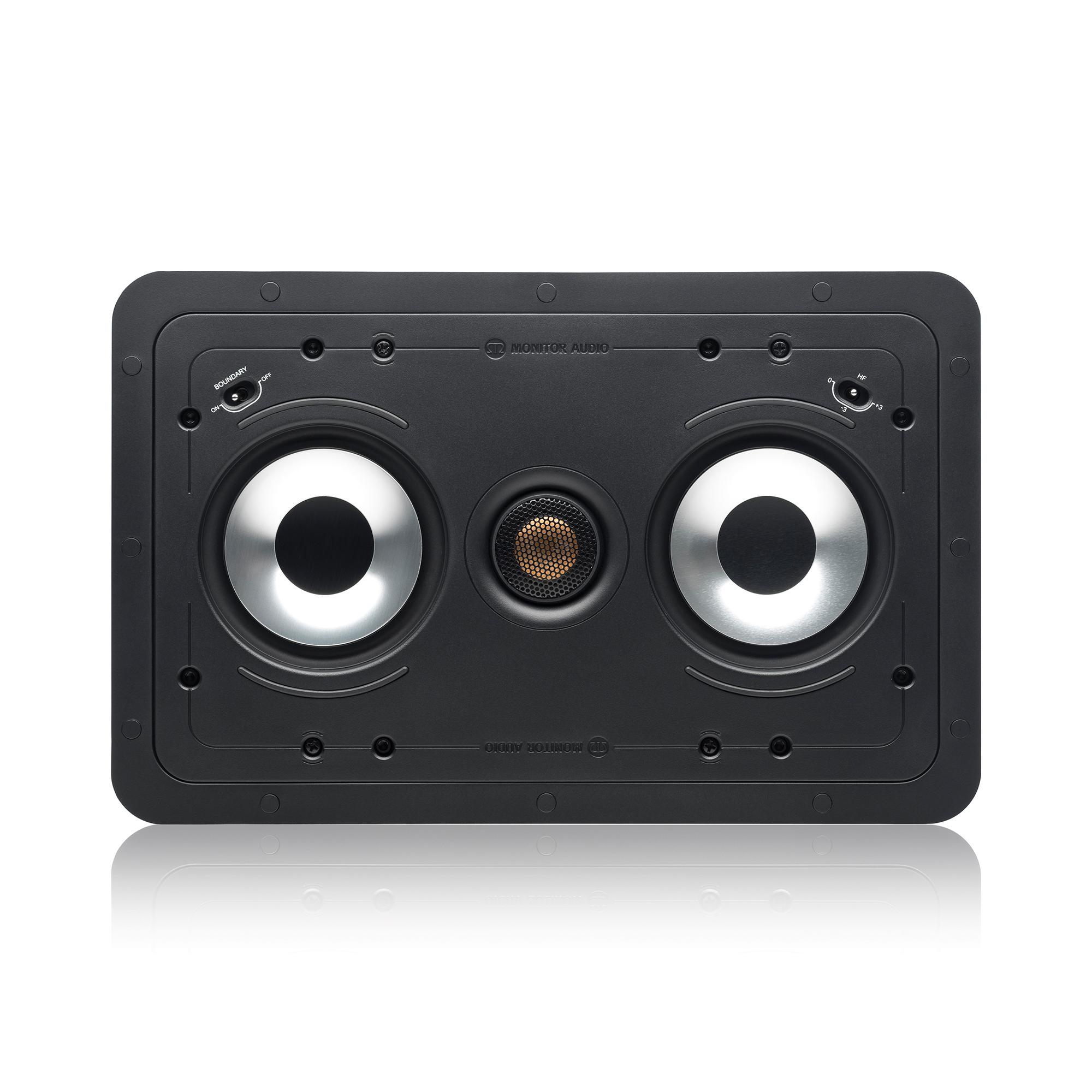

CP-WT240LCR In-Wall
The CP-WT240LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite. Utilising twin 4" C-CAM drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6" bass driver.
Technical Specification
Frequency Response 60 Hz - 25 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 88 dB
Maximum SPL 108.8 dBA
Power Handling (RMS) 100 W
Recommended Amplifier Requirements 20 - 100 W
Crossover Frequency 2.6 kHz @ 12 dB / Octave
Drive Unit Complement 2 x 4" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D) 217 x 333 mm (8 9/16 x 13 1/16")
Overall Depth (Including Grille) 103 mm (4 1/16")
Cut-Out Dimensions 183 x 299 mm (7 3/16 x 11 3/4")
Mounting Depth 97 mm (3 13/16")
Fixing Type 4 position Tri-Grip dog leg fixings
Construction Material Mineral Filled ABS Plastic (RoHS2 Compliant)
Weight 2.5 kg (5 lb 8 oz)
Pre-Construction Bracket WB4LCR Pre-Construction Bracket (Dark Brown)
