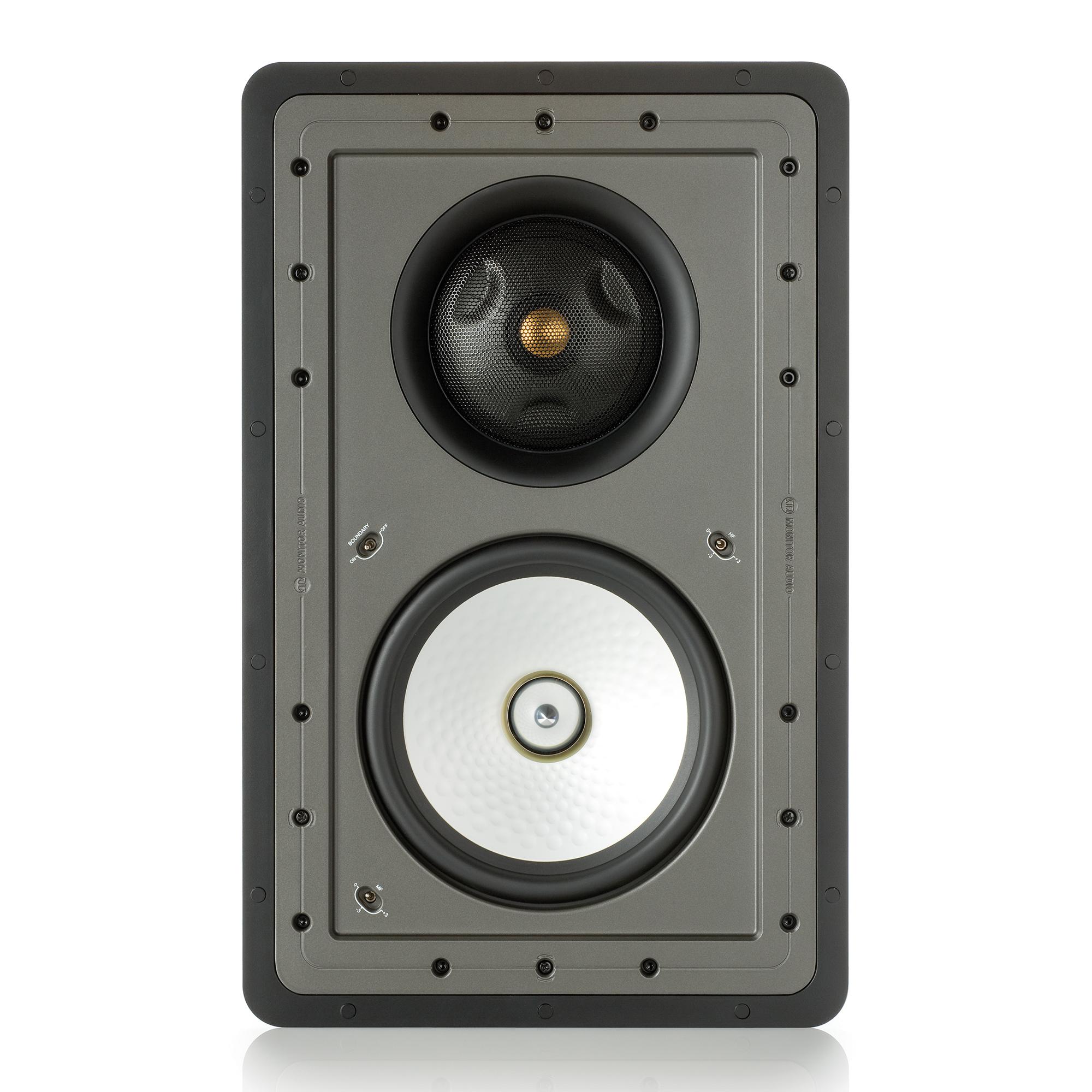

CP-WT380IDC In-Wall
Incorporating Monitor Audio's innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.
Technical Specification
Frequency Response 50 Hz - 30 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 89 dB
Maximum SPL 109.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 - 120 W
Crossover Frequency Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave
Drive Unit Complement 3-Way
8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM pivoting Gold Dome tweeter (tweeter & midrange driver combined in a pivoting module)
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB/ 0 dB/ -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D) 472.5 x 303.5 mm (18 5/8 x 11 15/16")
Overall Depth (Including Grille) 106 mm (4 3/16")
Cut-Out Dimensions 438 x 269 mm (17 1/4 x 10 9/16")
Mounting Depth 99 mm (3 7/8")
Fixing Type 6 position Tri-Grip dog leg fixings
Construction Material Mineral Filled ABS Plastic (RoHS2 Compliant)
Connection Gold plated 'push' type terminals
Weight 5.62 kg (12 lb 6 oz)
Pre-Construction Bracket WB10 Pre-Construction Bracket (Light Brown)
