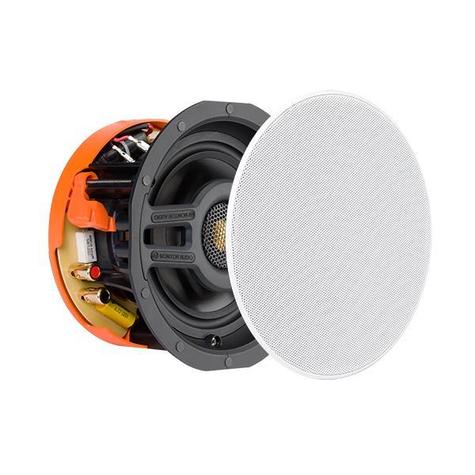

CS160 (Round)
Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high performance, ultra-discreet custom-installed systems.
The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.
Technical Specifications:
Frequency Response 60 Hz - 30 kHz
Nominal Impedance 6 ohms
Sensitivity (1W@1M) 88 dB
Maximum SPL 107.2 dBA
Power Handling (RMS) 70 W
Recommended Amplifier Requirements 15 - 70 W
Drive Unit Complement 1 x 6" MMP II cone bass driver
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
Acoustic Configuration 2-way
Overall Dimensions (Including Grille (H x W)) Round: 204.2 mm (8 1/16")

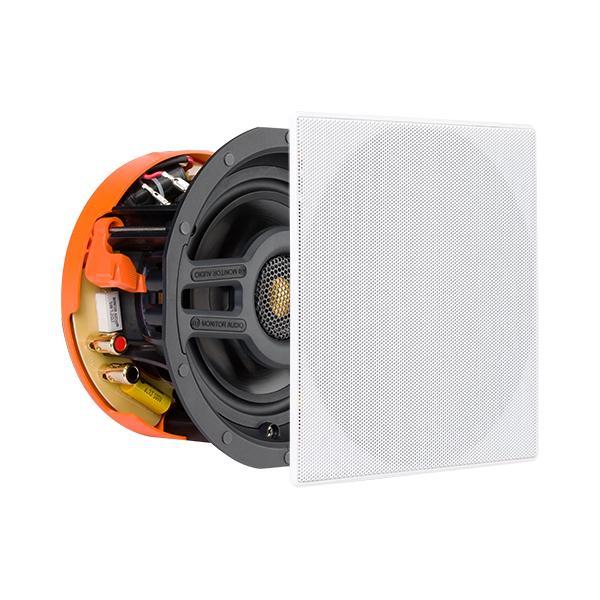

Square: 199.2 x 199.2 mm (7 13/16 x 7 13/16")
Mounting Depth 99 mm (3 7/8")
Cut-Out Hole Diameter 170 mm (6 11/16")
Fixing Type 3 position Tri-Grip dog fixings
Connection Gold plated ‘push’ type terminals
Grille Attachment Magnetic
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.10 kg (4 lb 10 oz)
Pre-Construction Bracket CB5 Pre-Construction Bracket (Blue)
Back Box CCBOX-R | CMBOX-R
