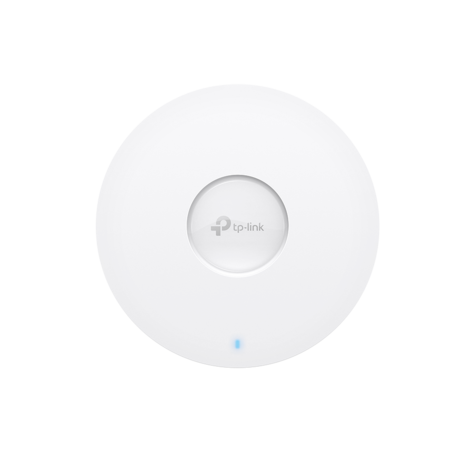

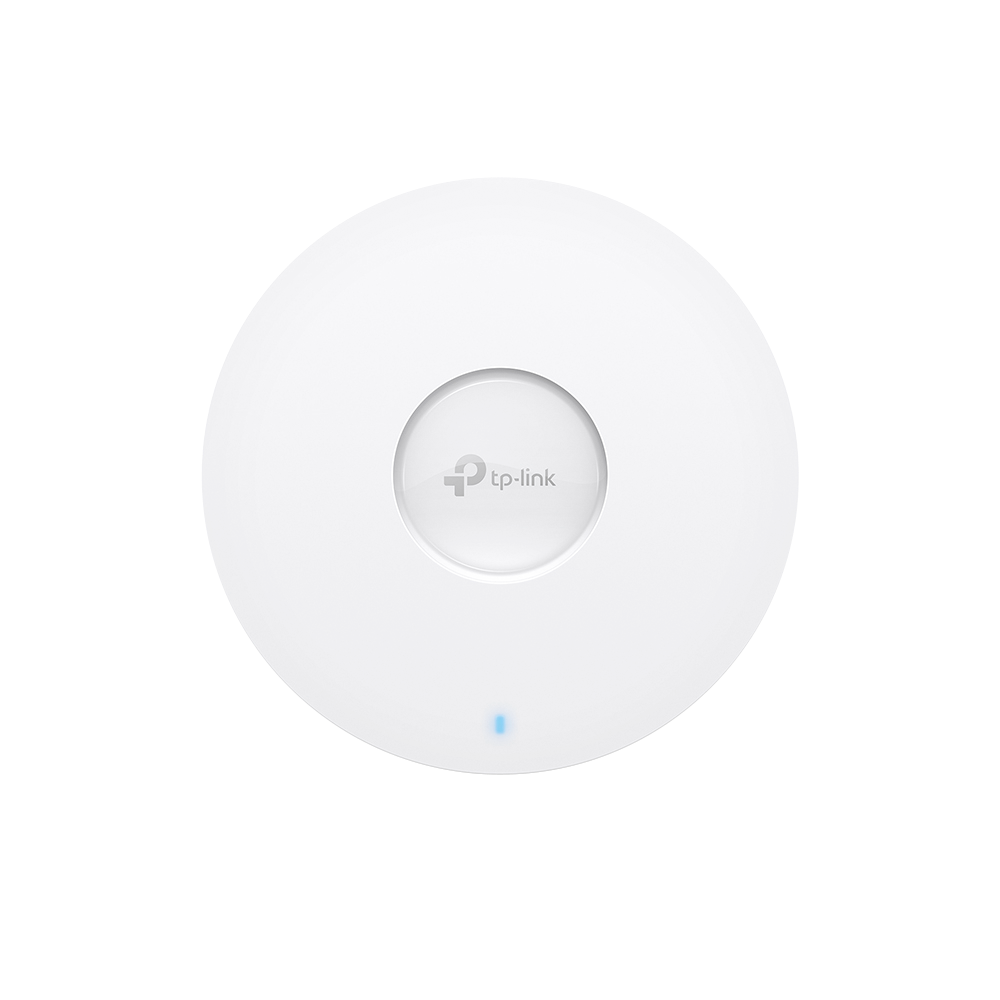

EAP620 HD v3 Omada Ceiling Mounted WiFi 6 Access Point (1775Mbps AX)

AX1800 Ceiling Mount WiFi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.△
• PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Technical Specifications

Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button: Reset
Power Supply: 802.3at PoE / 12 V DC
Power Consumption: EU: 12 W / US: 13.5 W
Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type: Internal Omni / 2.4 GHz: 2× 4 dBi / 5 GHz: 2× 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 1201 Mbps / 2.4 GHz: Up to 574 Mbps
Wireless Functions:

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Centralised Management: Omada Cloud-Based Controller / Omada Hardware Controller (OC300) / Omada Hardware Controller (OC200) / Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS
Package Contents: EAP620 HD / Power Adapter / Ceiling/Wall Mounting Kits / Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
