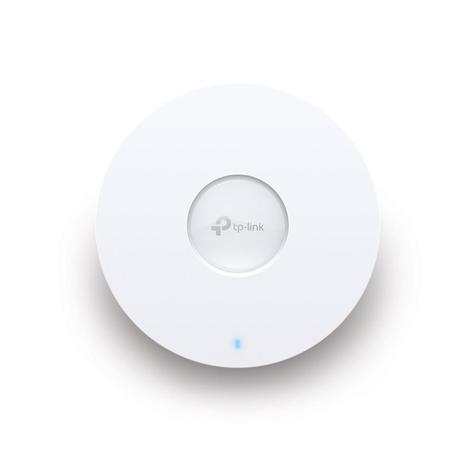

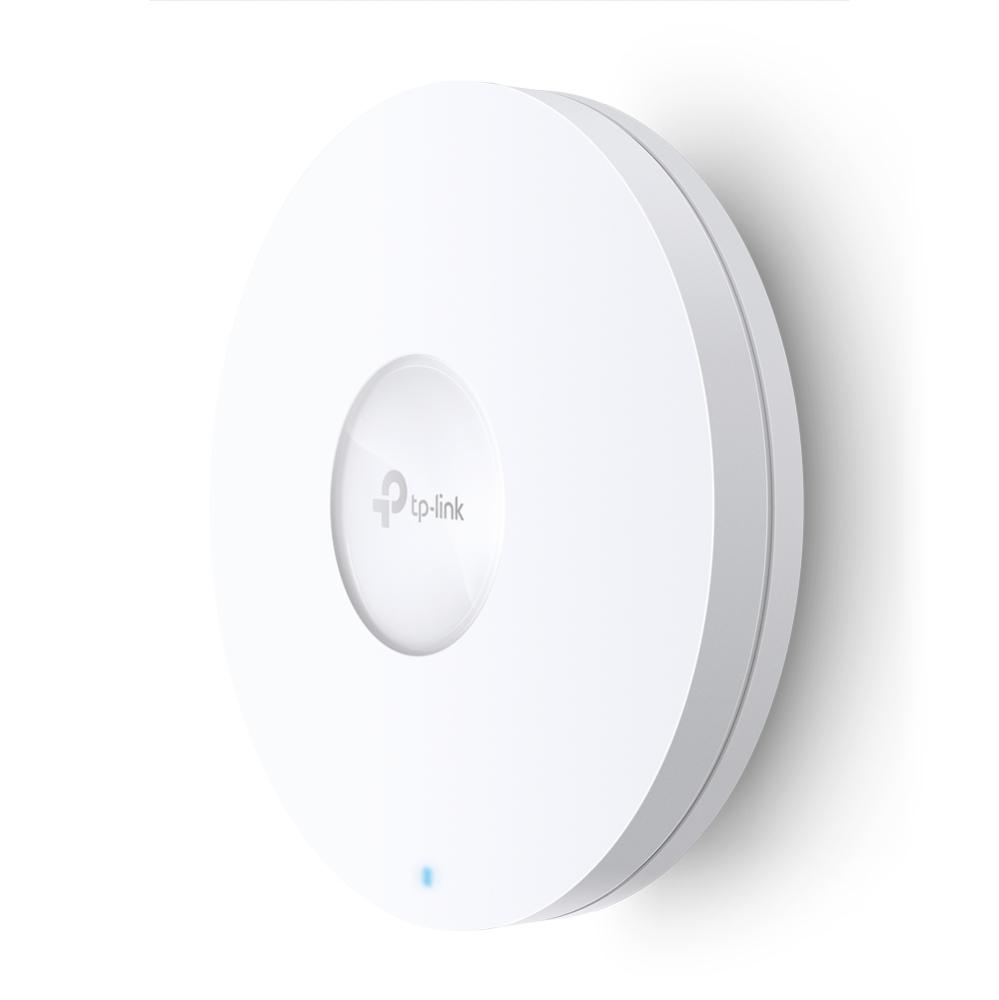

EAP660 AX3600 CEILING MOUNT DUAL-BAND WI-FI 6 ACCESS POINT
EAP660 HD
AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Technical Specifications
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- Dual Band: Yes (Dual Band)
- Max Wireless Transfer Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000/2500 Mbps
- Interface(s): 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Antenna: 2.4 GHz: 4 x 5 dBi
5 GHz: 4 x 6 dBi - Button(s): Reset
- Power Supply: 802.3at PoE
12 V DC - Power Consumption: 18.5 W
- Dimensions (W x D x H): 243 x 243 x 64 mm
- Weatherproof: No
- Frequency: 5GHz: Up to 2402Mbps
2.4GHz: Up to 1148Mbps - Wireless Functions: “1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming” - .: Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client - Wireless Security: “Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise” - Quality of Service: QoS(WMM)
- Management: “Omada App
Omada Cloud-Based Controller
Omada Hardware & Software Controller
Cloud Access
Email Alerts
LED ON/OFF Control
MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3
Multi-site Management
Management VLAN” - Advanced Functions: See Overview/ Video
- Environment (°C): Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
