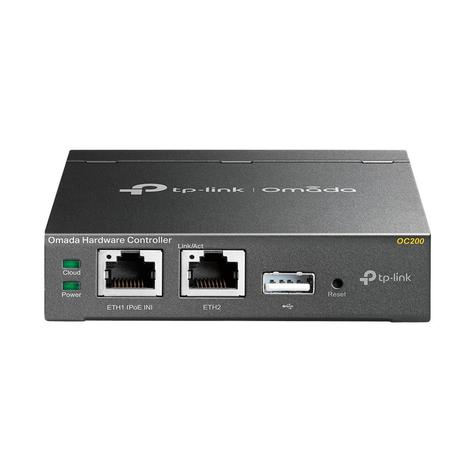

OC200 Omada Hardware Controller
OC200
Omada Hardware Controller
- Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
- Technical Specification
- Interfaces: 2 x 10/100Mbps Ethernet Port
1 x USB 2.0 Port for configuration backup
1 x Micro USB Port for power - Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A)
- Power Consumption: 5 W
- Management Scale: 100 EAPs
- Wireless Functions: L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS - Wireless Security: WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption
Access Control
SSID to VLAN Mapping
Guest Network - Management: Support Omada EAP Series
Cloud Access
Omada App Support
Reboot& Wireless Schedule
Auto Backup & Restore
Batch Firmware Upgrade - Authentication: Captive Portal
- Certification: “CE, FCC, RoHS”
- Dimensions: 100 x 98 x 25 mm
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
