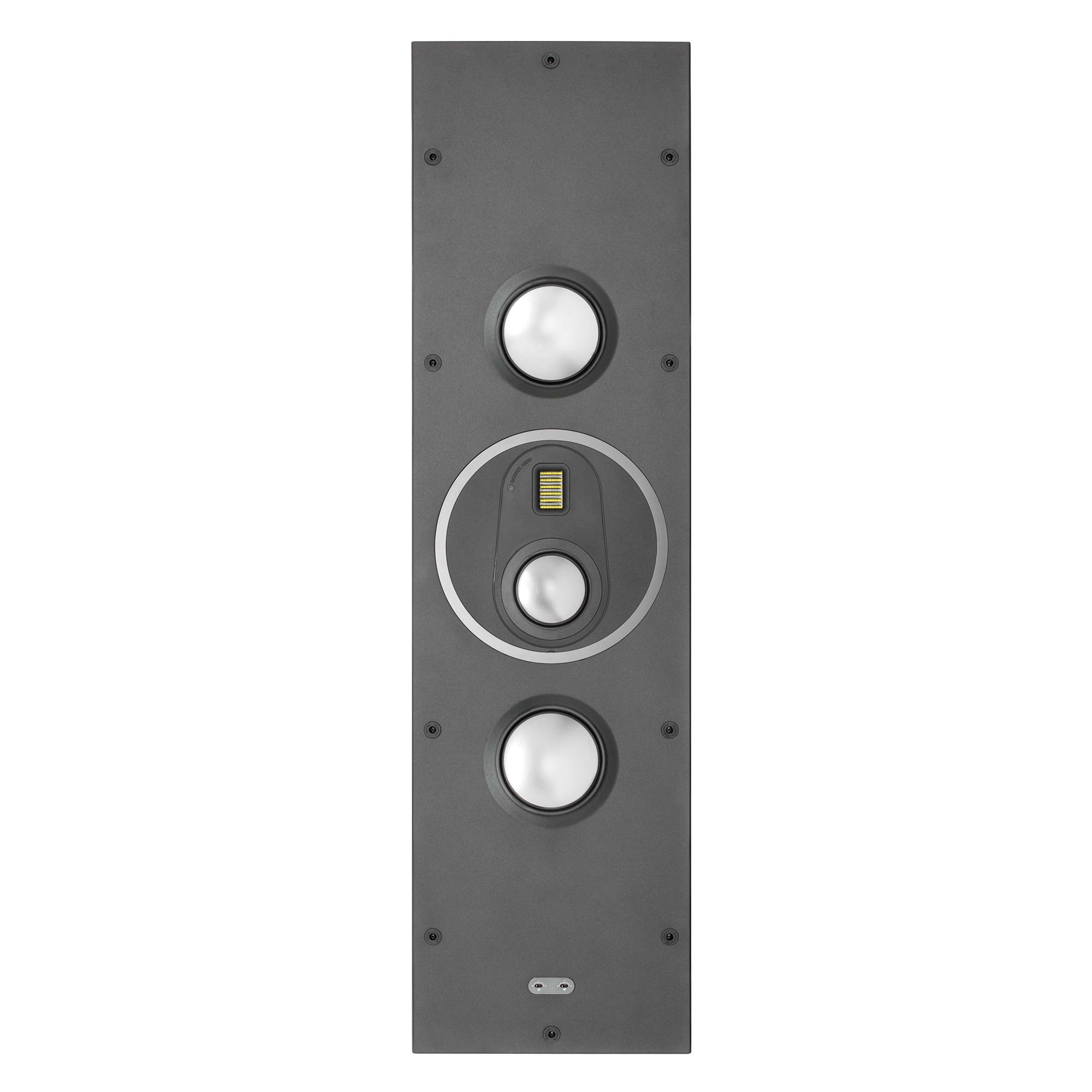

Platinum In-Wall II
The Platinum In-Wall II is a three-way reference architectural speaker system, perfect for custom home theatre projects where lifelike scale and dynamics are demanded.
Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions.
By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.
Technical Specification
System Format 3 Way - 4 Driver
Frequency Response (-6 dB - IEC 268-13) 52 Hz - 100 kHz
Sensitivity (1W@1M) 90 dB
Maximum SPL 117 dBA (pair)
Nominal Impedance 4 ohms (3.7 ohms min. @ 2.8 KHz)
Power Handling (RMS) 200 W
Recommended Amplifier Requirements 100 - 200 W
Cabinet Design Sealed Cabinet
Drive Unit Complement 2 x 6 1/2" RDT II bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer
Mid / H.F Crossover Frequency 4.1 kHz 3rd Order (18 dB/Octave)
Bass / Midrange Crossover Frequency (Hz) 700 Hz/ 2nd Order (12 dB/Octave)
Fixing Type 10 x Tri-Grip dog leg type fixing system
Overall Dimensions (Including Grille (H x W x D)) 1207 x 332 x 105.5 mm (47 9/16 x 13 1/16 x 4 4/16")
Cut-Out Depth 97.5 mm (3 13/16")
Weight (each) 27 kg (59.4 lb)
