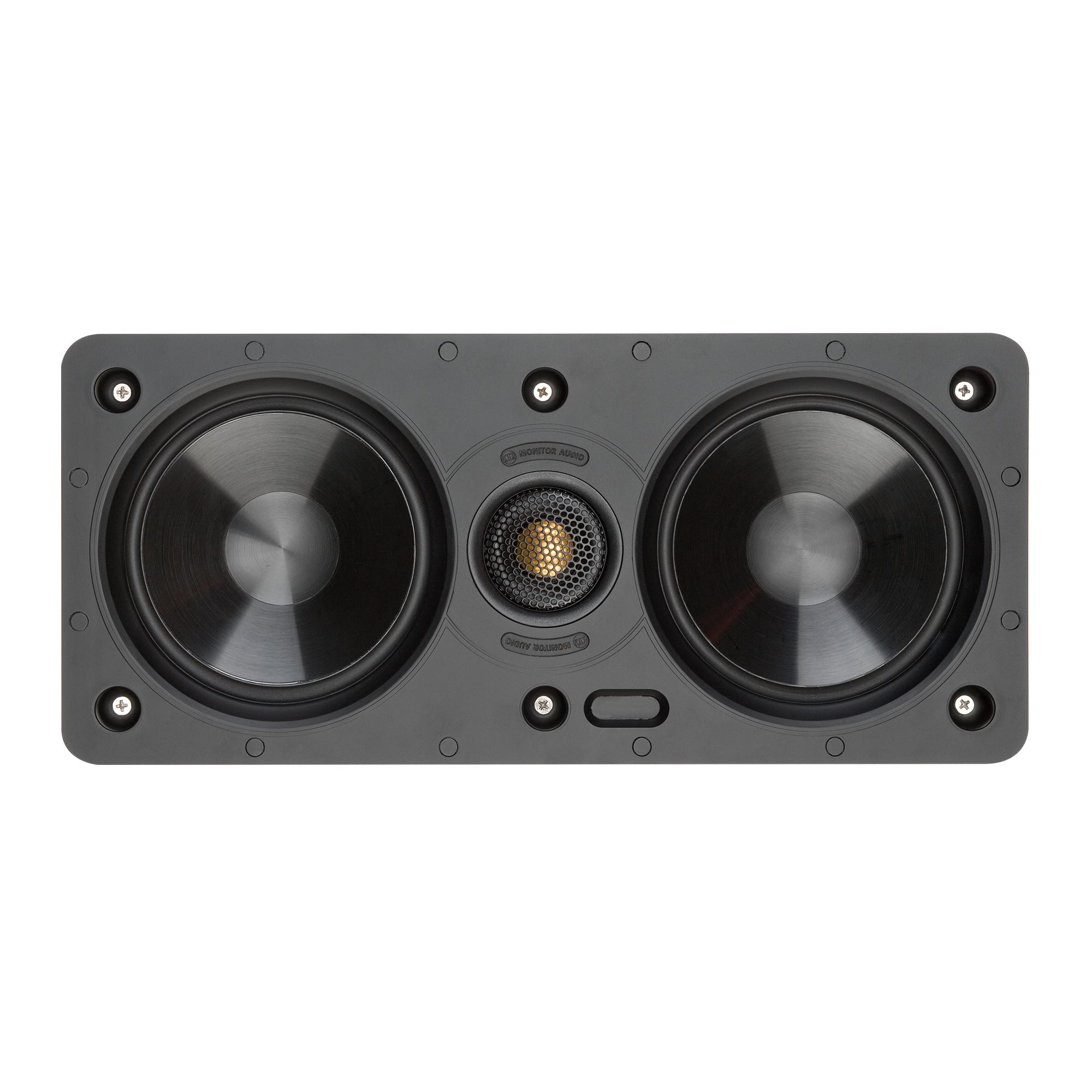

W150-LCR In-Wall
These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.
The 2-way W150-LCR in-wall model with 5-inch drivers features Monitor Audio's MMP II cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.
Technical Specifiactions:
Frequency Response 60 Hz - 30 kHz
Nominal Impedance 8 ohms
Sensitivity (1W@1M) 88 dB
Maximum SPL 108 dBA
Power Handling (RMS) 100 W
Recommended Amplifier Requirements 30 - 100 W
Drive Unit Complement 2 x 5" MMP II cone bass driver
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
Adjustment Controls N/A
Overall Dimensions (Including Grille (H x W x D)) 177.4 x 385.2 mm (7 x 15 3/16")
Overall Depth (Including Grille) 105 mm (4 1/8")
Mounting Depth 100 mm (3 15/16")
Cut-Out Dimensions 145 x 353 mm (5 3/4" x 13 7/8")
Required Clearance for Doglegs in Centre Configuration 400 x 197 mm (15 3/4" x 7 3/4")
Fixing Type Tri-Grip dog fixings
Construction Material Mineral filled ABS, RoHS compliant
Weight 3.76 kg (8.3 lb)
Pre-Construction Bracket WB5LCR Pre-Construction Bracket (Yellow)
